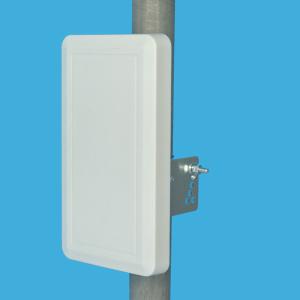

AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female
Feature:
High gain
Full day working
Optimized dimension
Vertical and horizontal
Application:
2.4 GHz WLAN system
2.4 GHz ISM band
Public wireless hot spot coverage
Wi-Fi system
|
AMXW-2425VH-D12L60 Electrical Specifications |
|
| Frequency range(MHz) | 2400～2500 |
| Polarization | Vertical and Horizontal |
| Gain(dBi) | 12 |
| Half-power beam width(°) | H: 60 V: 30 |
| Front-to-back ratio(dB) | ≥25 |
| Input Impedance(Ω) | 50 |
| VSWR | ≤1.5 |
| Isolation between ports(dB) | ≥28 |
| Cross-polar ratio(dB) | ≥15@0º ≥10@+/-60º |
| Sidelobe suppression for first sidelobe above horizon(dB) | 15 |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | 2-N Female |
| Dimensions-mm (Height/Width/Depth) | 220*122*25 |
| Packing size(mm) | 260*160*90 |
| Antenna weight(kg) | 0.37 |
| Radome material | ABS |
| Radome color | White |
| Mechanical tilt(°) | 0～10 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Waterproof Standard | IP54/ IP65/ IP67 |
| Mounting way | Pole-holding |
| Mounting hardware(mm) | ￠30～￠50 |
